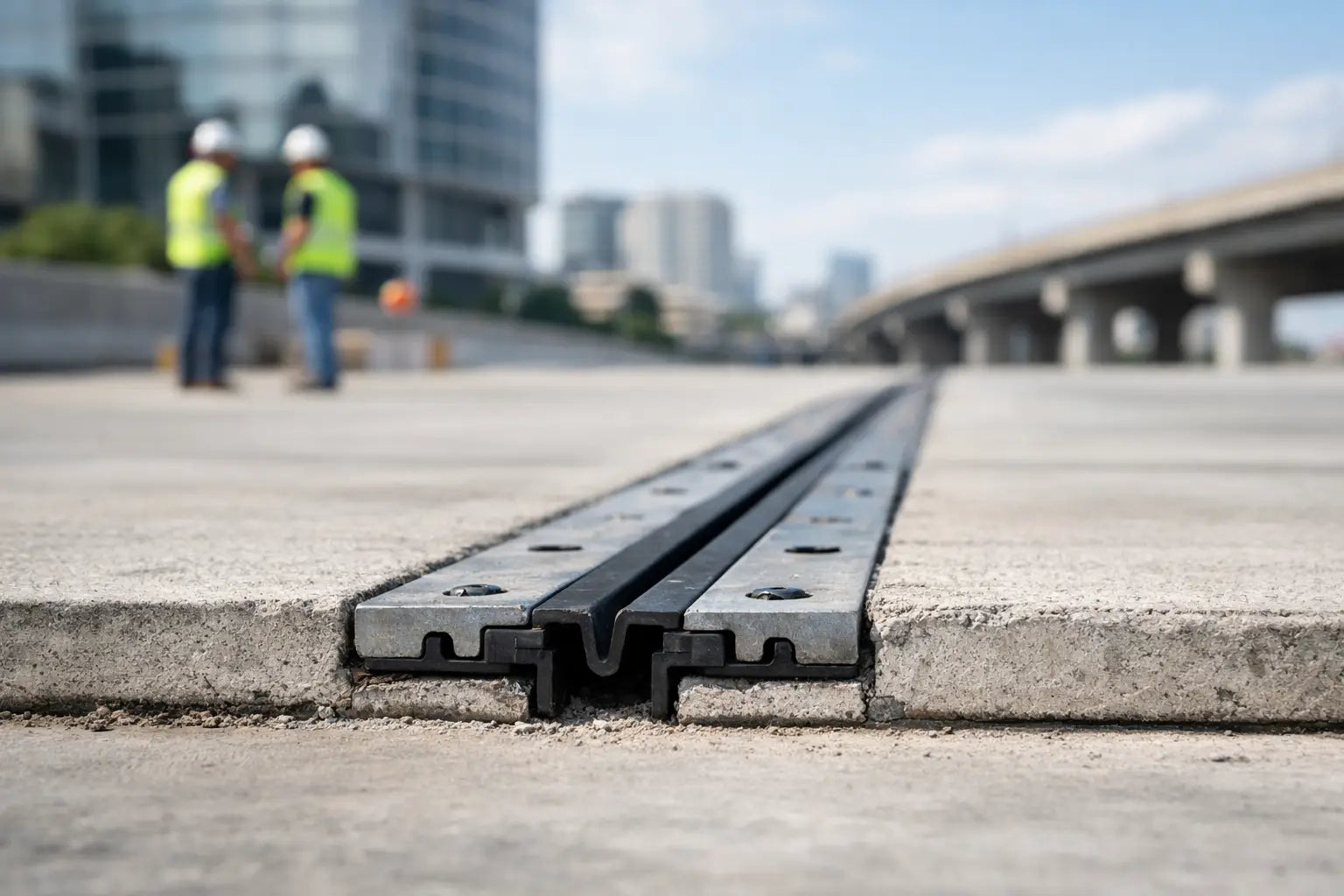

When Should Expansion Joint Be Used?
Concrete does not stay the same size year-round. It expands in heat, shrinks as it cures, and moves with moisture, load, and soil conditions. That is the real answer behind when should expansion joint be used - anytime concrete needs room to move without pushing against another slab, wall, column, or fixed structure.
A lot of jobsite problems start when movement gets treated like a finish issue instead of a design issue. If a slab is locked tight against a curb, foundation, pavement section, or metal penetration, pressure builds. Then you get random cracking, edge spalling, slab tenting, or joints that fail early. Expansion joints are there to absorb that movement before it turns into repairs, callbacks, and lost time.
When should expansion joint be used in concrete?
Use an expansion joint where concrete meets something that will not move with it, or where long slab runs need separation to handle thermal expansion. Common spots include sidewalks against buildings, driveways at garage slabs, pavement transitions, warehouse slabs around columns, and large exterior flatwork pours.
That does not mean every control joint is an expansion joint. Crews sometimes use the terms loosely, but they are not the same thing. A control joint is there to manage shrinkage cracking by creating a planned weak point. An expansion joint is a full-depth separation that allows movement between two sections or between concrete and another material.
If you skip that separation where it is needed, the slab has no place to go. Concrete will usually tell you that with cracks, pressure ridges, or broken edges.
Where expansion joints matter most
Exterior flatwork is where expansion joints show their value fast. Sidewalks, driveways, patios, and approach slabs see temperature swings, direct sun, moisture changes, and subgrade movement. In North Texas, heat is a major factor. Long runs of exterior concrete can grow enough during hot weather to push against adjacent structures and cause damage.
Driveways are a common example. If a driveway is poured tight against the garage slab or foundation without expansion material, movement can transfer stress right into that connection. The slab may crack near the interface, or the edge can start breaking down. The same applies where a sidewalk meets a building, stairs, or retaining wall.
Commercial paving has even more exposure. Larger slab areas and longer placements create more total movement. Expansion joints are often needed at building tie-ins, between pavement sections and fixed site elements, and where the design calls for isolation around structures.
Interior slabs can need them too, but usually in more specific conditions. Around columns, machine bases, walls, equipment pads, and slab penetrations, isolation is often required so the slab can move independently. In warehouses and industrial spaces, joint layout needs to match actual loading, traffic, and slab geometry - not just a generic spacing rule.
Expansion joint vs control joint
This is where jobs can get off track.
A control joint is cut or tooled to encourage shrinkage cracks to form in a straight, planned line. It does not usually provide true separation between one slab section and another fixed element. It helps crack control during curing and early life.
An expansion joint uses compressible filler material between slab sections or at abutting structures. It creates a gap that can close and open as the concrete moves. If the detail calls for full-depth isolation, that filler needs to continue through the slab depth, not just sit at the surface.
In plain terms, use control joints to manage cracking. Use expansion joints to manage movement. On many jobs, you need both.
Signs a slab needs an expansion joint
The easiest way to think about it is to look for restraint. If concrete is likely to expand and run into something stronger or more fixed than itself, plan for isolation.
That usually includes slab-to-building connections, slab-to-curb or slab-to-wall transitions, around columns and footings, and between separate placements where movement is expected. Long straight runs of exterior flatwork also deserve attention, especially where heat buildup is high and there are limited places for movement relief.
Geometry matters too. Narrow sections tied into wider slabs, L-shaped placements, and irregular pour layouts can concentrate stress. If a slab cannot move evenly, pressure builds at corners and tie-in points. That is where expansion material often earns its keep.
Subgrade conditions can also push the decision. If soil movement is expected, especially with moisture-sensitive soils, jointing details become more important. Expansion joints will not solve poor base prep, but they can help reduce restraint-related damage at interfaces.
When expansion joints are often skipped by mistake
One common miss is assuming saw cuts are enough everywhere. They are not. Saw cuts help with shrinkage cracking, but they do not isolate a slab from a wall or another fixed slab. If a driveway, sidewalk, or apron is hard against a building, a saw cut alone will not create room for expansion.
Another mistake is using the wrong material or too little depth. If the joint filler is thin, weak, or not continuous, the slab can still bind. Once debris fills the joint or concrete bridges across it, movement is restricted again.
The third issue is spacing assumptions. There is no one-size-fits-all rule that works on every project. Slab thickness, reinforcement, pour size, exposure, temperature range, subgrade, and what the slab is bearing against all change the answer. A residential walkway and a commercial loading area do not get treated the same way.
Material and installation still matter
If the plans call for expansion material, use a product built for the application and install it correctly. The filler needs to match the slab depth and stay in place during the pour. It also needs to be located where movement is actually expected, not just where it is convenient to set material.
For exterior work, joint sealant may also be part of the detail, depending on exposure and use. That helps keep water and debris out of the joint. In traffic areas, joint protection becomes more important because damaged edges can fail fast under repeated wheel loads.
This is also where coordination helps. Joint layout should work with rebar, dowels, thickened edges, and placement sequence. If reinforcement or embedded items unintentionally lock the slab together at an isolation point, the expansion joint cannot do its job.
Reinforcement does not replace expansion joints
This point gets missed a lot. Rebar helps hold cracked concrete together and improves structural performance, but it does not stop concrete from expanding. If movement needs to be isolated, adding steel is not a substitute for an expansion joint.
In fact, reinforced slabs still develop stress where they are restrained. The reinforcement may change how the slab behaves after cracking, but it does not remove the need for proper joint design. On some projects, dowels are used across certain joints to transfer load while still allowing movement. That detail has to be specified and installed correctly.
What contractors should check before the pour
Before concrete shows up, look at where the slab begins, where it ends, and what it touches. Check every connection to foundations, walls, columns, curbs, stairs, and existing concrete. Review whether those locations need true isolation or just crack control.
Then check the layout against slab size, pour sequence, and reinforcement. If there is fabricated rebar, dowels, or custom components involved, make sure the joint detail still works with the steel package. That is especially important on commercial work where field fixes get expensive fast.
On residential jobs, the risk is usually simpler but still costly. A missing joint at a garage slab, porch, or sidewalk-to-house connection can turn into visible cracking and homeowner complaints in a short time. The material cost to isolate it is small compared to tearing out and replacing concrete later.
The practical answer to when should expansion joint be used
Use an expansion joint when concrete needs room to move without bearing directly against another structure or slab. That usually means slab edges at buildings, fixed site elements, long exterior runs, isolation around columns or penetrations, and transitions between placements with different movement behavior.
If the slab can expand, and something is there to stop it, that is the place to look hard at expansion material. If the only plan is to saw cut it later, you may be solving the wrong problem.
Good concrete work is not just about the pour and finish. It is about letting the slab behave the way concrete behaves. Get the jointing right, get the materials on site before you need them, and the job has a much better chance of staying clean after the forms are gone.
When the details are still on paper, that is the cheapest time to fix a bad joint plan.
